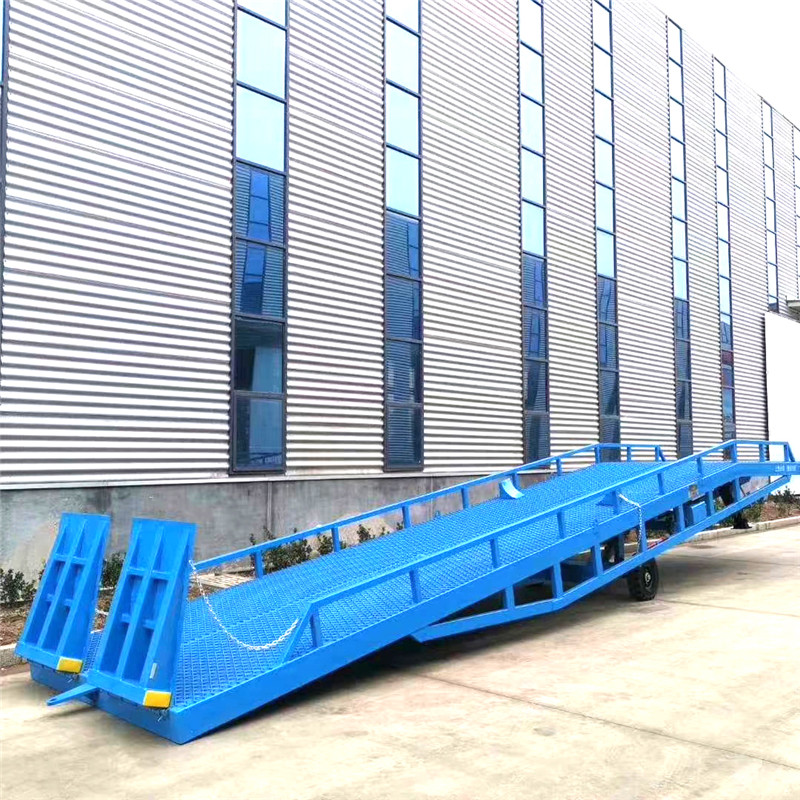

Mobile dock leveler (Yard Ramp)
Mobile steel Yard Ramp is mainly used to transport stock between truck and warehouse, and convey stock in workshop between process involved with different heights, of high efficiency and max loading capacity. One person can finish the job without distributing others, achieving the rapid loading and unloading of goods. Mainly used in factories, warehouses, yards, stations, docks, grain depots and other large-scale loading and unloading place.
Model | DCQY8-0.7 | DCQY10-0.7 | DCQY12-0.7 |
Loading capacity（T) | 10 | 8 | 12 |
Slope length（MM）A | 7500 | 7500 | 7500 |
Platform length（MM）B | 2500 | 2500 | 2500 |
Tailboard length（MM）C | 1000 | 1000 | 1000 |
Tongue length（MM）D | 350 | 350 | 350 |
Overall length（MM）E | 11000 | 11000 | 11000 |
Slope inside width（MM）F | 1900 | 1900 | 1900 |
Slope outside width（MM）G | 2020 | 2020 | 2020 |
Storage height（MM）H | 1000 | 1000 | 1000 |
Stroke（MM）I | 700 | 700 | 700 |
Max height（MM）J | 1700 | 1700 | 1700 |
Overall size（MM）L*W*H | 11000*2020*1100 | 11000*2020*1100 | 11000*2020*1100 |
Optional Electric Motor: 220VAC or 110VAC / Single phase / 1.1Kw. | |||
- Main diameter: 160×80×5.75mm high strength manganese steel rectangular tube.
- Horizontal diameter (1): 160×80×5.75mm high-strength manganese steel rectangular tube;
- Vertical diameter: 100×50×5.75mm high-strength manganese steel rectangular tube.
- Front flap: 100×50×2.75mm high strength manganese steel rectangular tube+4mm Tread plate
- the fixed behind lip: 14mm flat + 6mm plate non-slip handle.
- Up and down to strengthen: 100×50×2.75mm high strength manganese steel rectangular tube.
- Up and down vertical diameter: 100×50×2.75mm high strength manganese steel rectangular tube.
- Platform material: serrated steel grating.
- Cylinder: fine grinding. Ф80mm (2 pieces).
- high-pressure tubing: double steel mesh structure. Maximum pressure 40MPa, the maximum pressure of the elevator is 8MPa.
- Seals: Each cylinder mounted Japan -NOK import seals.
- Hydraulic oil: 32 # wear hydraulic oil (half a year or 500 hours of work to replace, can extend the service life).
- Hydraulic hand pump: DC-20 type.
- Tires: 600-9 wear-resistant solid tires.
- Outriggers: Use hand-held legs.
- Paint: conventional color: peacock blue.
- Load capacity: be designed to be 1.33 times of the maximum load capacity.
Mobile stock lift table is mainly used to transport stock between truck and warehouse, and convey stock in workshop between process involved with different heights, of high efficiency and max loading capacity. One person can finish the job without distributing others, achieving the rapid loading and unloading of goods. Mainly used in factories, warehouses, yards, stations, docks, grain depots and other large-scale loading and unloading place.
◆ loading and unloading of high efficiency, only one person needed;
◆ with forklifts operating together, according to the need to move the location, it is convenient, fast and safe when unloading;
◆ Power configuration: manual hydraulic pressure; no need external power supply, there will be no sparks;
◆ Products to be rust-proof, non-rain, non-slip, explosion-proof, fire-proof;
◆ High-quality seal system, hydraulic cylinder is more reliable, there will be no oil leakage concerns.
◆ Product surface is designed to be non-slip mesh, no deformation; non-slip density 30 * 25mm;
◆ with comfortable operating handle and good hand hydraulic system.
◆ fixed outriggers: be able to make the process of loading and unloading more solid (optional custom).
◆ Security-chain fixed, in order to prevent the displacement between the bridge and the carriage.
