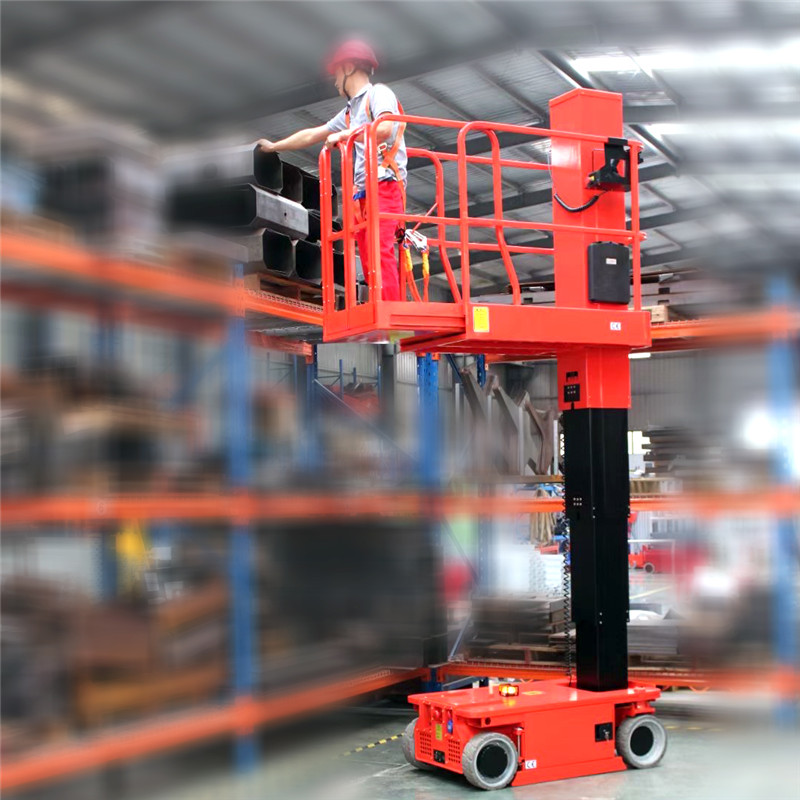

Telescopic vertical lift
Product Highlights
- Electric lifting push rod replaces traditional hydraulic cylinder, «oil-free» makes energy saving and environmental protection
- Equipped with brush less DC motor, the whole machine is maintenance-free
- No noise, zero emission, no pollution, energy saving and environmental protection
- Light structure, flexible movement
Description
Standard Features
Description
| Model | AMWP3.6-6100 | AMWP4.8-6100 | AMWP6-6100 |
| Max. Working Height – D | 5.6m | 6.8m | 8m |
| Max. Platform Height | 3.6m | 4.8m | 6m |
| Loading Capacity | 227kg | 227kg | 159kg |
| Ext. Platform Capacity | 114kg | 114kg | 114kg |
| Overall Length – A | 1.36m | 1.36m | 1.36m |
| Overall Width – B | 0.76m | 0.76m | 0.82m |
| Overall Height – C | 1.7m | 1.98m | 1.98m |
| Platform Dimension (Extended) | 1.8m×0.70m | 1.8m×0.70m | 1.8m×0.70m |
| Ext. Platform Length | 0.51m | 0.51m | 0.51m |
| Wheel Base | 1.04m | 1.04m | 1.04m |
| Inner Turning Radius | 0m | 0m | 0m |
| Outer Turning Radius | 1.4m | 1.4m | 1.4m |
| Travel Speed(Stowed) | 4km/h | 4km/h | 4km/h |
| Travel Speed(Raised) | 1.1km/h | 1.1km/h | 1.1km/h |
| Up/Down Speed | 31/32sec | 41.5/42sec | 52/53sec |
| Gradeability | 25% | 25% | 25% |
| Drive Tyres | Φ305×100mm | Φ305×100mm | Φ305×100mm |
| Drive Motors | 2×12VDC/0.5kW | 2×12VDC/0.5kW | 2×12VDC/0.5kW |
| Lifting Motor | 24VDC/1.3kW | 24VDC/1.3kW | 24VDC/1.3kW |
| Battery | 2×12V/100Ah | 2×12V/100Ah | 2×12V/100Ah |
| Charger | 24V/15A | 24V/15A | 24V/15A |
| Weight | 810kg | 980kg | 1060 |
Standard Features
- Standard Equipment
- Proportional Controls
- Extended Platform
- Drivable At Full Height
- Non-Marking Tyre
- 2WD
- Automatic Brake System
- Hour meter
- Brake Release
- Self-lock Gate on Platform
- Emergency Lowering System
- Emergency Stop Button
- Onboard Diagnostic System
- Tilt Sensor With Alarm
- Flashing Beacon with Alarm on All Motion
- Charger Protection
- Automatic Pothole Protection
- Transport Tie Hole
- Anti-pinch protection system
- Oil Pipe Explosion-Proof System
